General:
The Spectra DVB12S/P is an Entry-Level DVB-S modulator with built-in MPEG-2 encoder especially for mobile and portable applications. It is ideally suited for very cost-sensitive applications where good picture quality and easy simple controls are required.

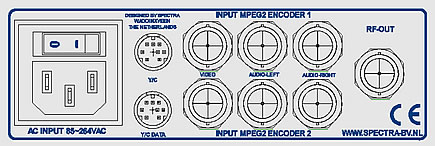

The unit includes analog inputs for left/right Audio and composite and Y/C Video, RF L-Band output, and RS-232 remote control.
The DVB modulator is housed in a rugged compact small case for any Environmental Conditions.
The DVB12S/P is the perfect component for any digital headend multi-channel application, mobile contribution such as sport and news gathering via direct microwave or satellite links and any other broadcast and professional application where quality but also budgetary considerations are important.
Applications:
• Digital Terrestrial, Satellite, Cable, MMDS Television
• Fixed and Mobile Contribution / Distribution / Broadcasting
• Digital Satellite Television Head-Ends
• Video Distribution over Wireless infrastructure
• DSNG / DENG applications
• DVB-S Encoding and Delivery
Standard Features:
• Composite Video input
• Y/C input
• 2 Audio Channels Analog over BNC
• Advanced 4:2:0 MP@ML video compression up to 15 Megabit/s
• Video Pre-Processing
• Ultra low Latency 4:2:0 for conferencing applications
• Control via front panel, RS-232 Serial ( Windows CD software included )
• Low power consumption
• Portable ruggedized housing for mobile applications
Main Options:
• Second MPEG2 Encoder ( optional )
• Second stereo Audio channel ( optional )
|
|
|
|
| Portable DVB-S Modulator for L-Band |
| Summary |
|
Very Cost-Effective
Ideal for cost-sensitive applications with optimal picture quality and simple control features |
|
RS-232 remote control
Remote control via the provided Spectra windows based software. |
|
SI-table insertion
On board transport stream multiplexer for 2 MPEG2 encoders and built-in DVB-SI generator (Service names, EPG etc). |
|
Ruggedized Portable Housing
Small dimensions for portable applications. |
|
Selectable Symbolrates
Up to 14 selectable symbolrates starting from 1.667 up to 12.5 Msymbols. |
|
Support for all FEC ratios
FEC rates 1/2, 2/3, 3/4, 5/6, 7/8. |
|
L-Band Frequency range
Frequency selectable between 1220 - 1350 MHz with 1 MHz increments. |
|
Windows Software included
Control of all embedded software features with an intuitive Windows based graphical user interface. |
|
Note: Picture is shown together with the PWA1300 linear RF power amplifier unit.
|
|
